CLCTRUCK tipper truck is used famous truck chassis, reliable PTO,good hydraulic cylinder system (HYVA) and good carbon steel. CLCTRUCK tipper trucks are used to help the construction world complete projects quickly, efficiently and safely.It mainly includes urban construction dump truck, engineering mine dump truck, highway dump truck, agricultural dump truck and garbage dump truck.
CLCTRUCK tipper truck's high reliability, good passability, strong bearing capacity which can meet users' requirements of high quality, functionality and economy.
Item No :
TT001Order(MOQ) :
1 unitPayment :
TT,LCProduct Origin :
Suizhou,Hubei,ChinaColor :
multicolorShipping Port :
Shanghai,Wuhan,HogrosLead Time :

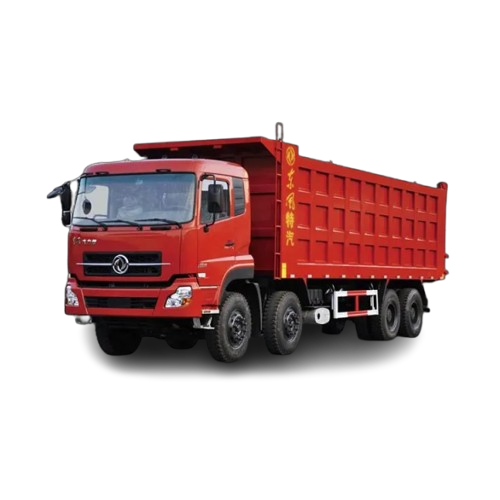

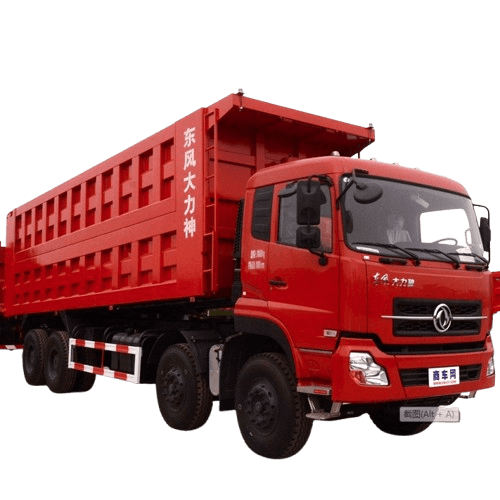

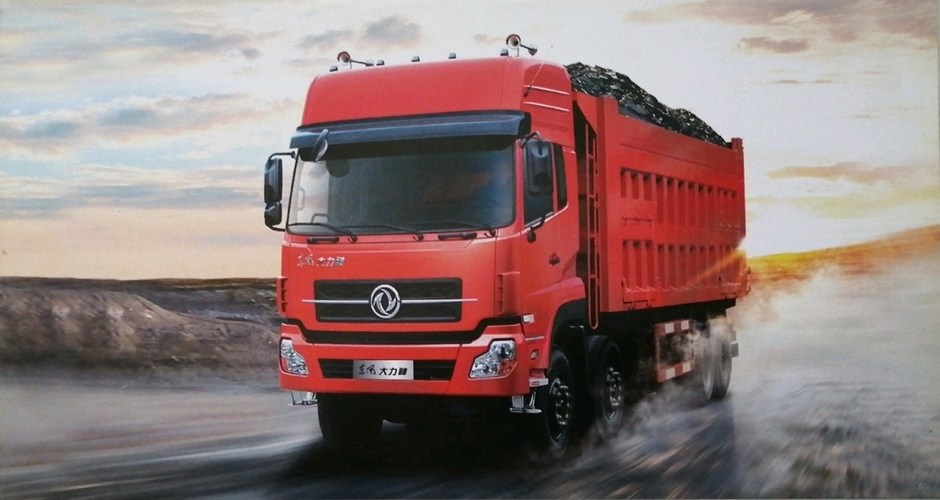

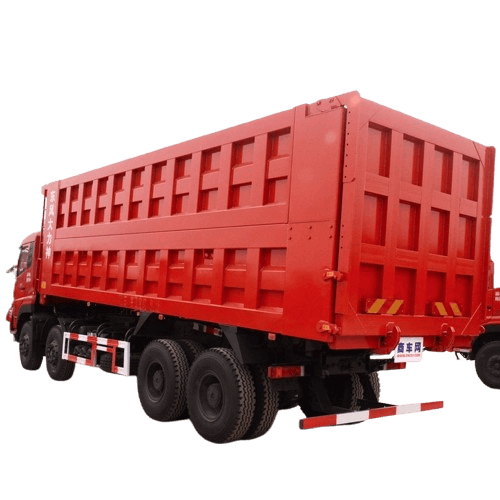

7-15 days420 HP Loading Capacity 50Ton 8X4 Dongfeng Tipper Truck
Production description
1. This Dongfeng 8x4 loading capacity 50ton 420HP tipper truck adopts Dongfeng truck chassis, 32m3 tipper box,automatic discharging system, hydraulic lifting system.
2. This Dongfeng 8x4 50ton tipper truck could be equipped with many different size tipper box with Q235 carbon steel or Q345 steel.
3. This tipper truck could be front lifting or middle lifting.
Highlights of Tipper Trucks

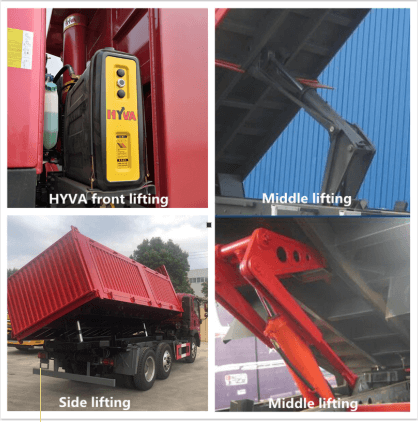

1. Our tipper trucks are with different lifting,such as HYVA front lifting,middle lifting, side lifting,

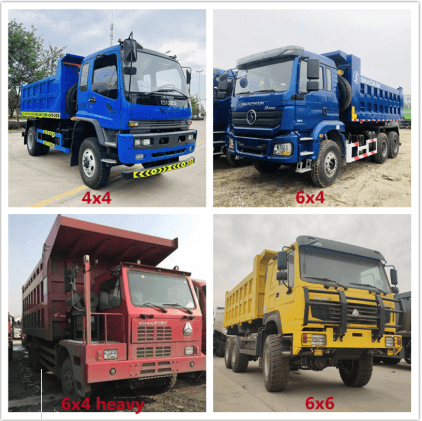

2. Our tipper trucks with different drive model,for example 4x4,6x4,8x4,4x2,6x6

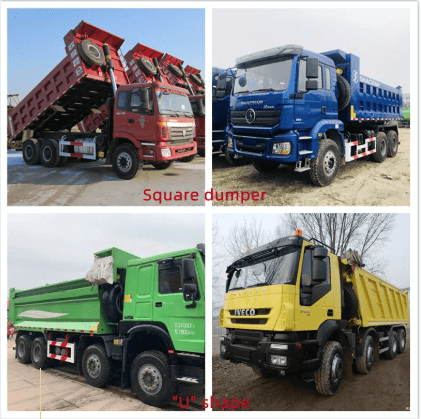

3. Our tipper truck with different dumper,square dumper and “U” shape dumper
Specification of 420 HP Loading Capacity 50Ton 8X4 Dongfeng Tipper Truck
|
SPECIFICATION |
||
|
Truck specification |
|
|
|
Product name |
420 HP Loading Capacity 50Ton 8X4 Dongfeng Tipper Truck |
|
|
Over dimensions(LXWXH) |
9800X2550X3400mm |
|
|
Chassis specification |
|
|
|
Cabin |
Dongfeng |
|
|
Drive type |
8x4 |
|
|
Wheelbase |
1850+3800+1350mm |
|
|
Fuel type of engine |
Diesel |
|
|
Engine |
Model |
Weichai |
|
Maximum horse power |
420HP |
|
|
Number of cylinders |
10 |
|
|
Emission standard |
Euro III |
|
|
Gearbox |
Type |
FAST,Manual,10 forwards and 2 reverse |
|
Tyres |
Size |
12,00R20 radial tyre |
|
Quantity |
12+1 spare tire |
|
|
Upper body specification |
|
|
|
Dumper box |
Capacity |
32m3,50ton |
|
Tank material |
Side 8 bottom 10mm Q235 carbon steel or Q345 steel |
|
|
Function |
Equipped with hydraulic middle lifting cylinders |
|
|
Equipped with different many different size dumper box with Q235 carbon steel or Q345 steel |
||
|
Equipped with hydraulic automatic operation |
||
|
Equipped with self unloading function |
||
|
The model have good road passability which can use in the bad road conditions |
||
