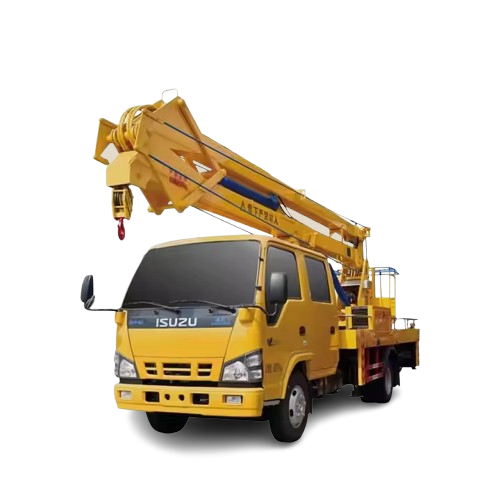

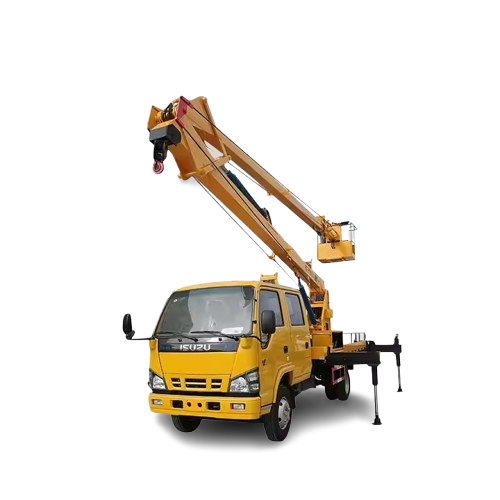

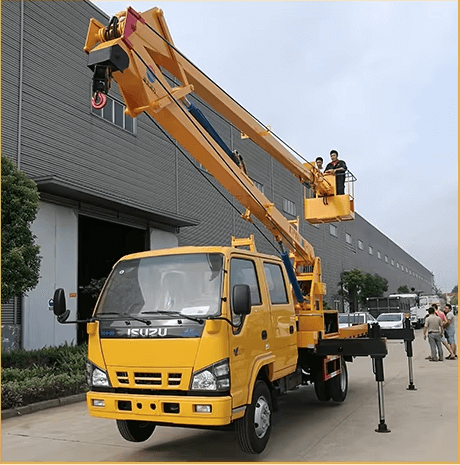

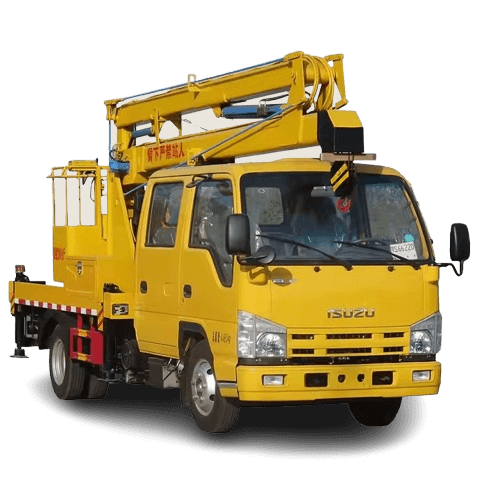

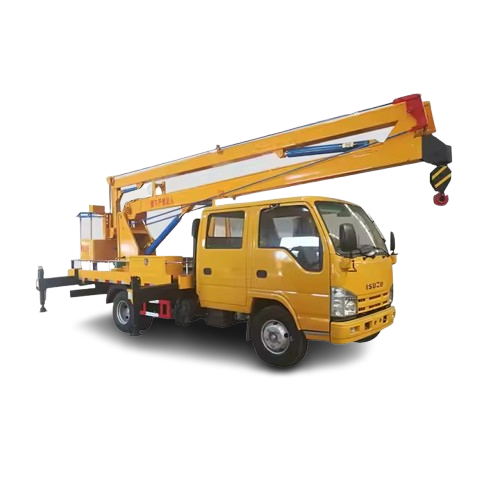

ISUZU 16M 4x2 Aerial Working Platform Truck More Height Booms Available

ISUZU 16M 4x2 Aerial Working Platform Truck More Height Booms Available

Product Description：

The aerial working platform truck has a telescopic arm that can be height-adjusted so workers can reach different heights for work. The aerial working platform truck has the characteristics of high efficiency, safety, reliability, and easy operation.They are one of the indispensable and important tools for modern urban construction,maintenance and decoration.

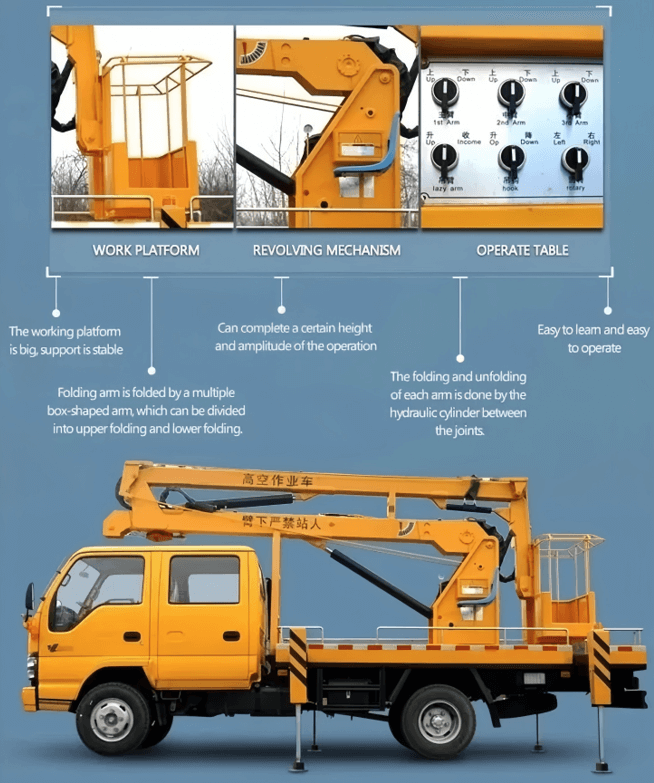

1.This ISUZU 4X2 16m aerial working platform truck adopts ISUZU chassis with double-row cabin, Boom type is Floding boom, Max. operation height is 16m.

2. The boom is made of high-strength steel plate HQ60/5.0, which is formed by bending and welding, with large force and high strength;

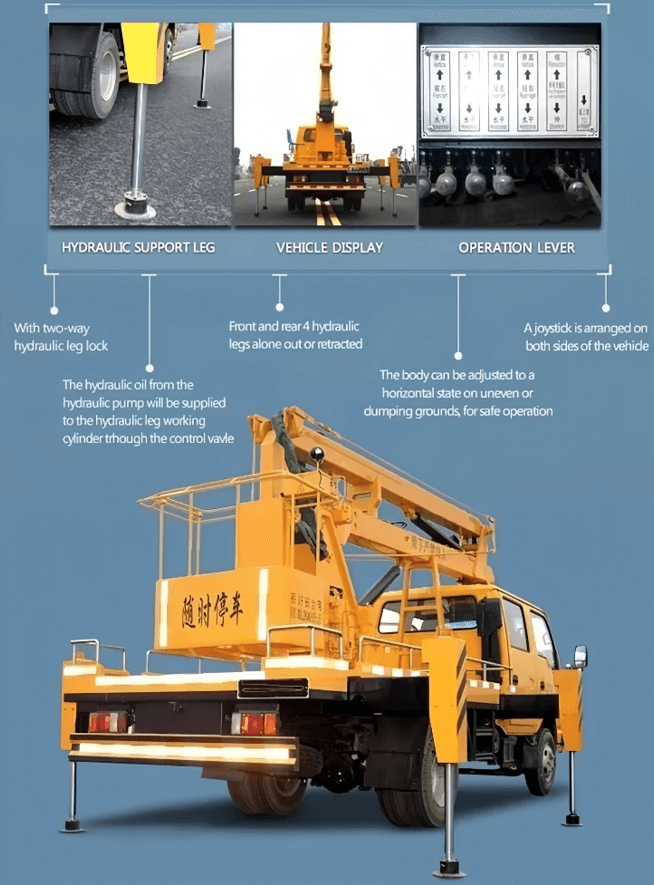

3. The H-shaped outrigger has good stability, and can be operated simultaneously or separately, which is flexible and can adapt to various working conditions;

4. The rotary table rotates 360 ° in both directions and adopts a gear driven reduction mechanism; (With self-lubricating and self-locking functions)

5. Integrated electric control valve block mode is adopted for boarding operation, with beautiful layout, stable operation and convenient maintenance;

6. Interlocking between getting off and getting on. As an aerial working platform truck supplier, we ensure safe and reliable operation;

7. The stepless speed regulation is realized by throttle valve during upper operation;

8. The hanging basket is mechanically leveled with external pull rod, which is more stable and reliable;

9.The turntable and basket are equipped with start and stop switches for convenient operation and fuel saving

Specification of ISUZU 16M 4x2 Aerial Working Platform Truck

Function description

High technical level

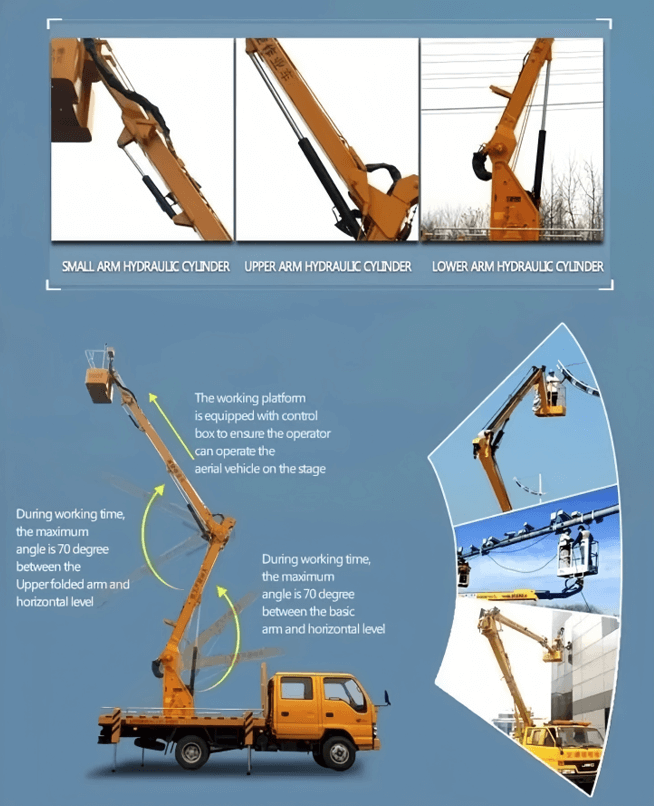

Intelligent and safe boom

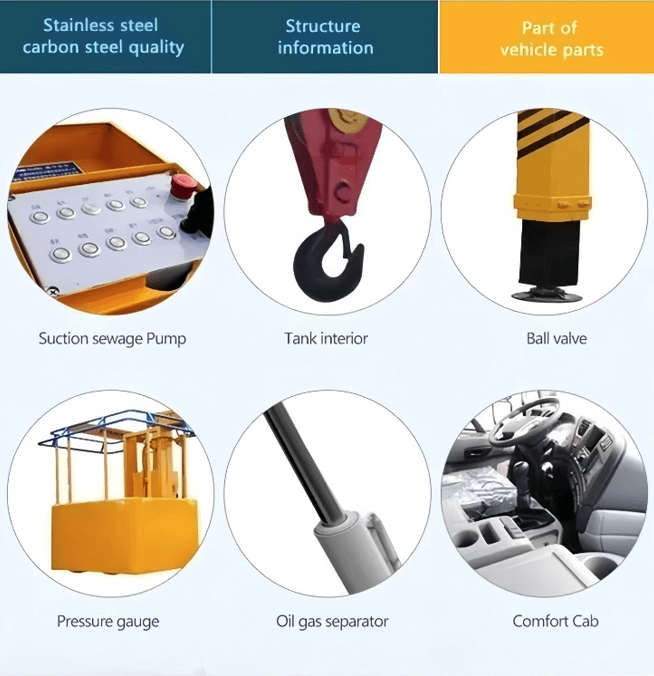

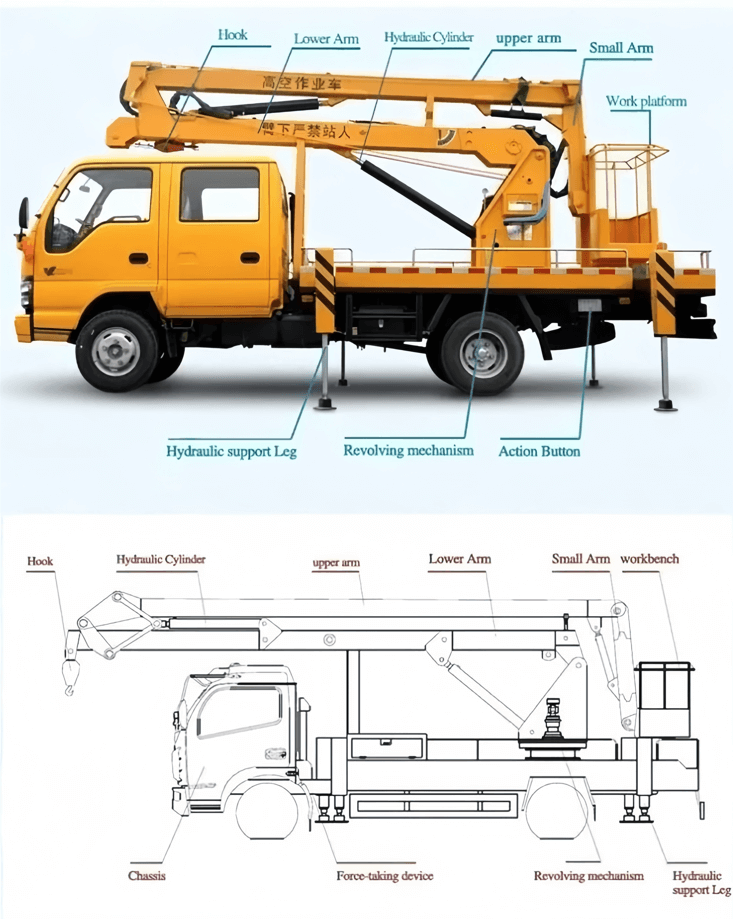

Main parts
