Fuel tank trailers also called fuel tank semi-trailer are various types according different shapes,materials and volumes.The tank shape can be designed as square tank,elliptical tank,round tank and goose neck tank according to customized.The material is usually carbon steel,stainless steel,aluminum alloy and other steel plate.The tank body could be divided into different compartments with multiple reinforced waves proof clapboards.The volume of tank are available from 30 to 60 cubic meters and axles could be done 2,3,4 axles according to customized.
Item No :
FTT003Order(MOQ) :
1Payment :
TT,L/CProduct Origin :
Suizhou,Hubei,ChinaColor :
multicolorShipping Port :
Shanghai,Wuhan,HogrosLead Time :

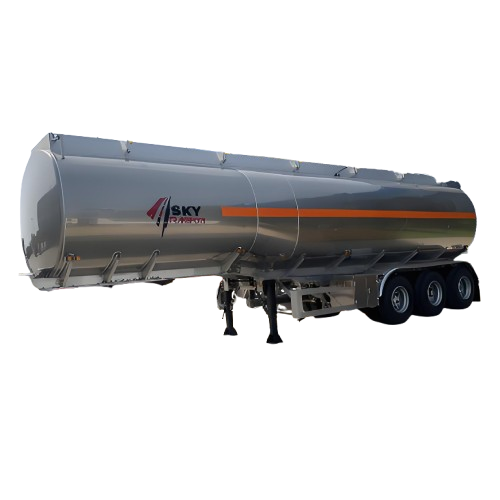

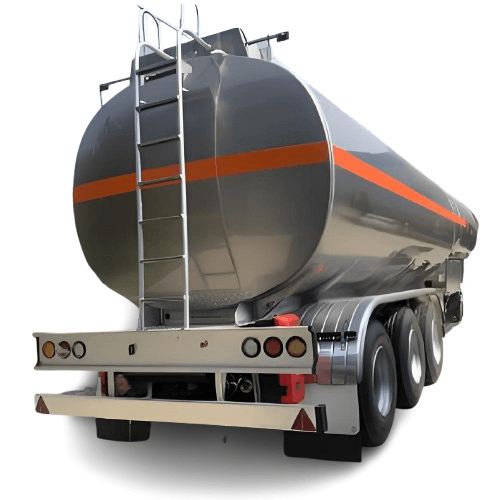

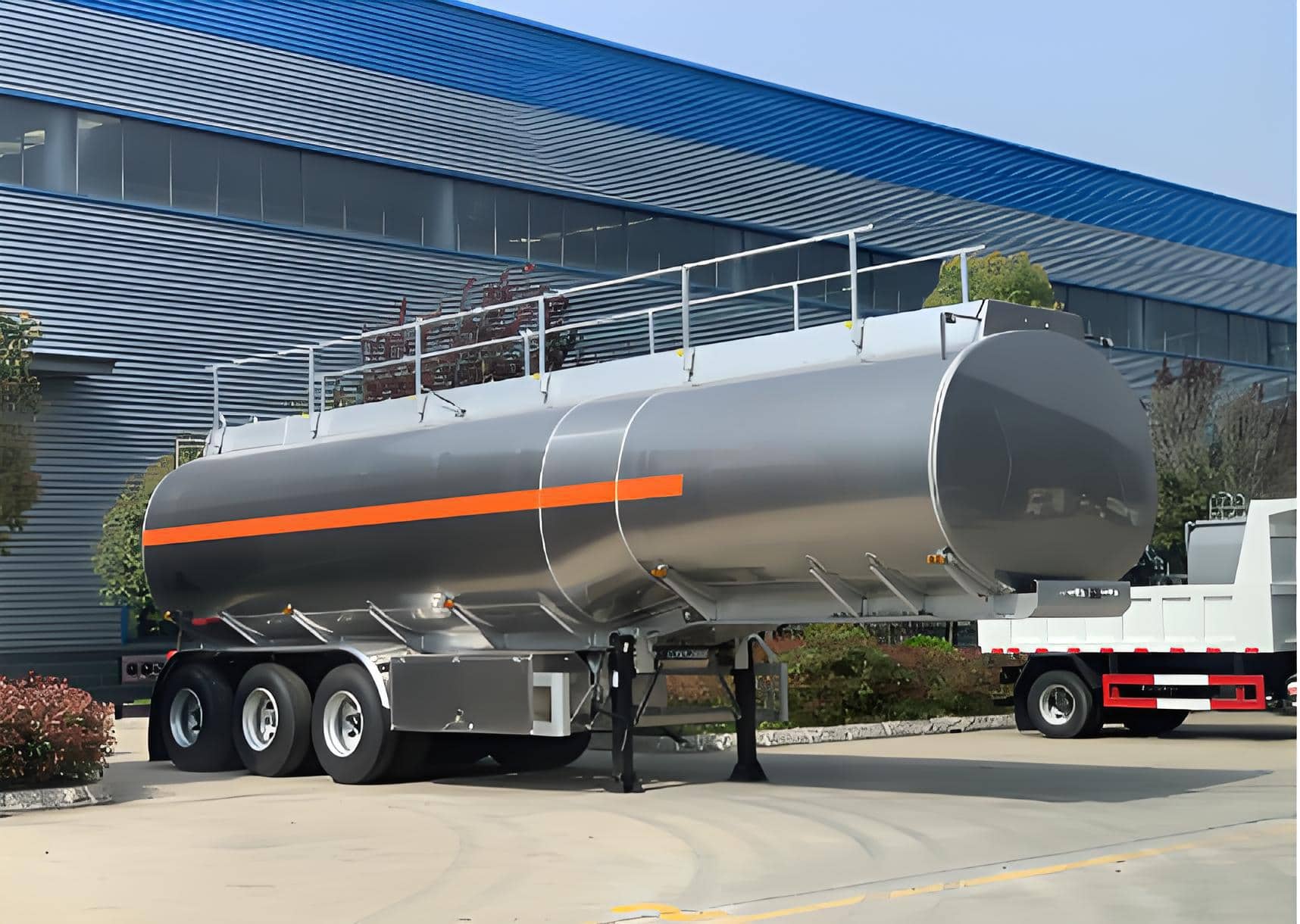

7-15 days3 Axles Aluminum Alloy 55000L Fuel Tank Trailer European Standard Manhole and Factory Price
Product description
1. This trailer is 55m3 aluminum alloy petroleum tanker trailer, which is made of high-quality 5454 aluminum alloy plates with a cylinder of 5mm and a head of 6mm.
2. The tank body is equipped with 6 sets of European standard manhole, 6 aluminum alloy sea bottom valves, 6 compartments equally, and 6 sets of bottom loading systems.
3. The Semi trailer walking mechanism is configured with high-strength steel auxiliary girder, 13ton Fuwa or BPW axle, 16ton brake pads, 28t single acting outrigger, 13pieces of 12R22.5 vacuum tires, standard configuration of other manufacturers, all aluminum alloy accessories, and issue the trailer qualified product certificate and tank inspection report after the manufacture finished.
Specification of 3 Axles Aluminum Alloy 55000L Fuel Tank Trailer
|
Specification |
|
|
Overall dimension |
12500*2500*3800mm |
|
Tare weight |
10200kgs |
|
Loading capacity |
55000 Liters |
|
Shape |
Goose neck round shape |
|
Tank material |
Aluminum alloy |
|
Thickness of tank body |
5mm body,6mm endplate |
|
Lifting ladder |
Including top walkway and backside steel material |
|
Manhole cover |
Steel manhole cover, ∮500mm,6 sets with 6 breather valves |
|
Bottom valve |
6 sets of API Pneumatic Bottom Valve, Pneumatic control |
|
Discharging valve |
6sets ∮100mm discharging valves |
|
Compartment |
6 |
|
Discharging pipe |
4"rubber hose, 2 pc, 6m long |
|
Trailer specification |
|
|
I Beam&Chassis |
Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
|
Axle |
3 axles,FUWA 13ton |
|
Suspension |
Heavy duty mechanical suspension |
|
Floor |
3mm checker plate |
|
Leaf spring |
10pcs |
|
King pin |
JOST brand 2" Bolt-in King Pin |
|
Landing gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
Wheel rim |
8.25-22.5 wheel rim 13 pieces |
|
Tire |
12R22.5 tire with one spare tire. 13 pieces |
|
Spare tire |
One set of spare tire including a carrier |
|
Braking system |
WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |

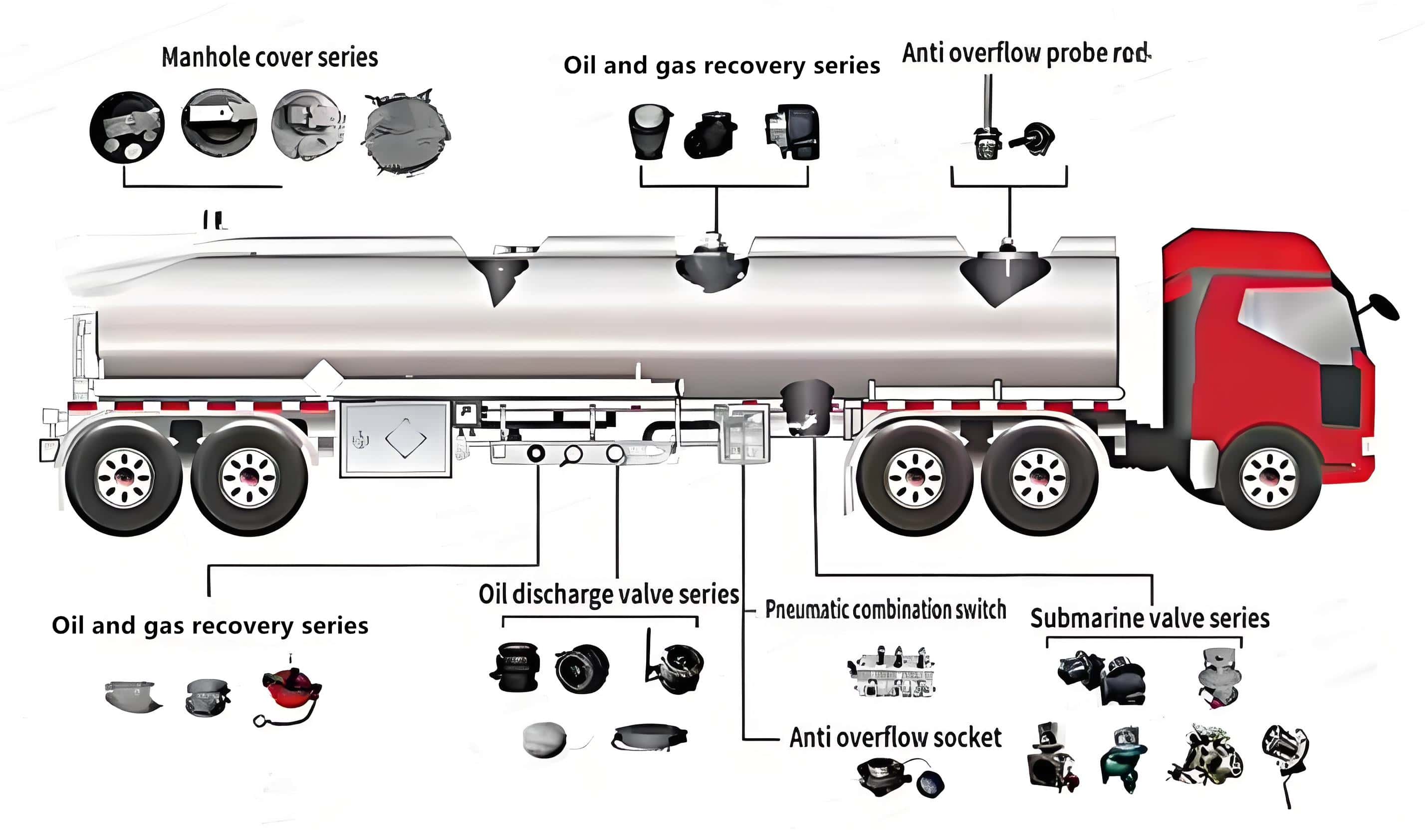

Exploded view
Parts details
 |

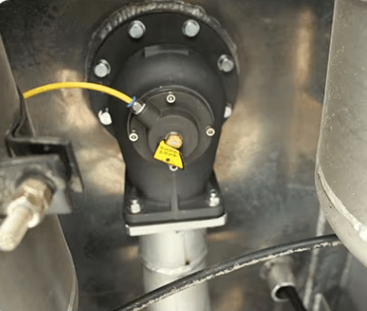

Subsea valve |
|
Oil and gas recovery system |
 |
 |

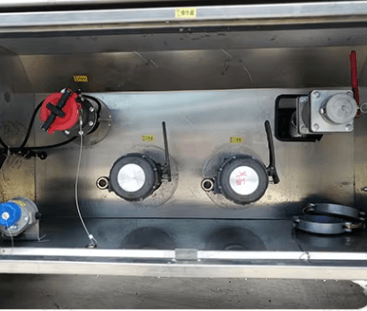

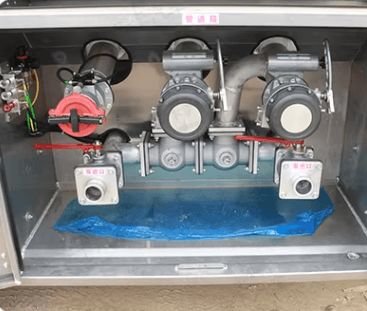

Pump in and pump out |
|
Lower fitting mouth |
 |
 |
Anti overflow probe rod |
|

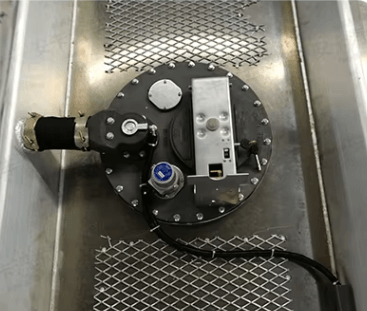

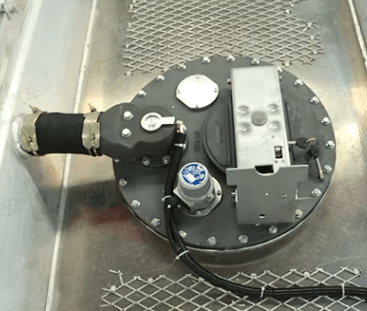

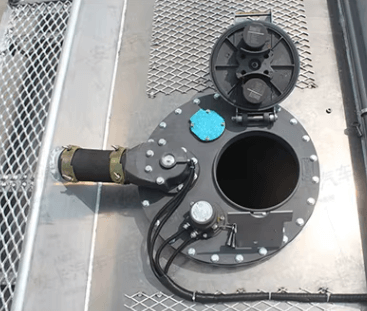

Standard tank mouth |
 |
 |

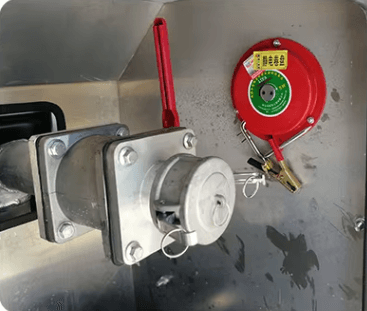

Static conductive wire reel |
