Fueling tank truck is mainly used for the transportation and storage of petroleum derivatives (gasoline,diesel,crude oil,lubricating oil,coal tar and other oil products).The mobile gas vehicle is equivalent to a mobile gas station, which can supply fuel to the required vehicles anytime and anywhere.
Item No :
FT002Order(MOQ) :
1Payment :
TT,L/CProduct Origin :
Suizhou,Hubei,ChinaColor :
multicolorShipping Port :
Shanghai,Wuhan,HogrosLead Time :

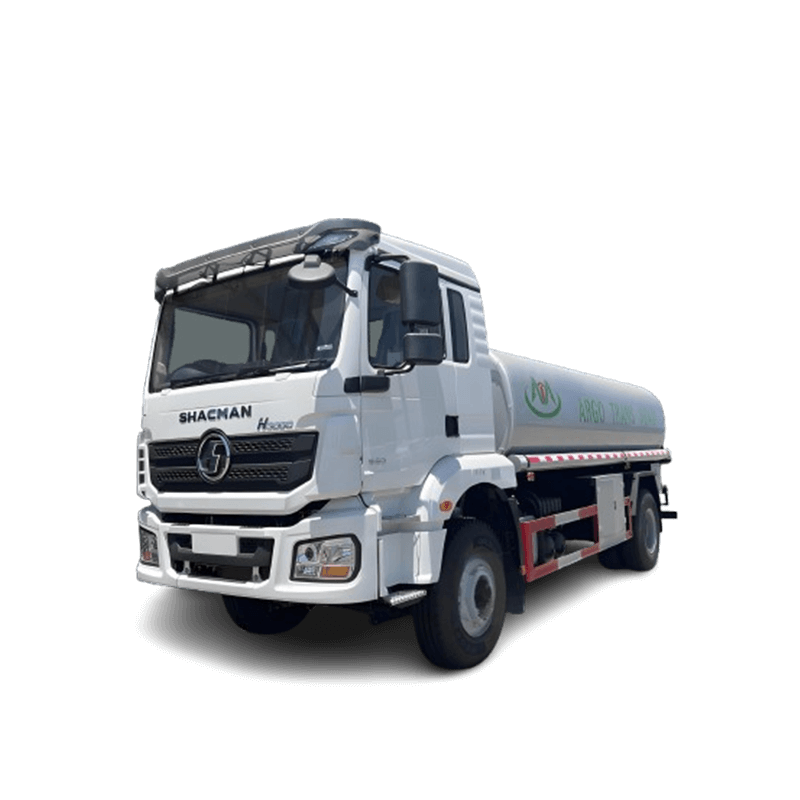

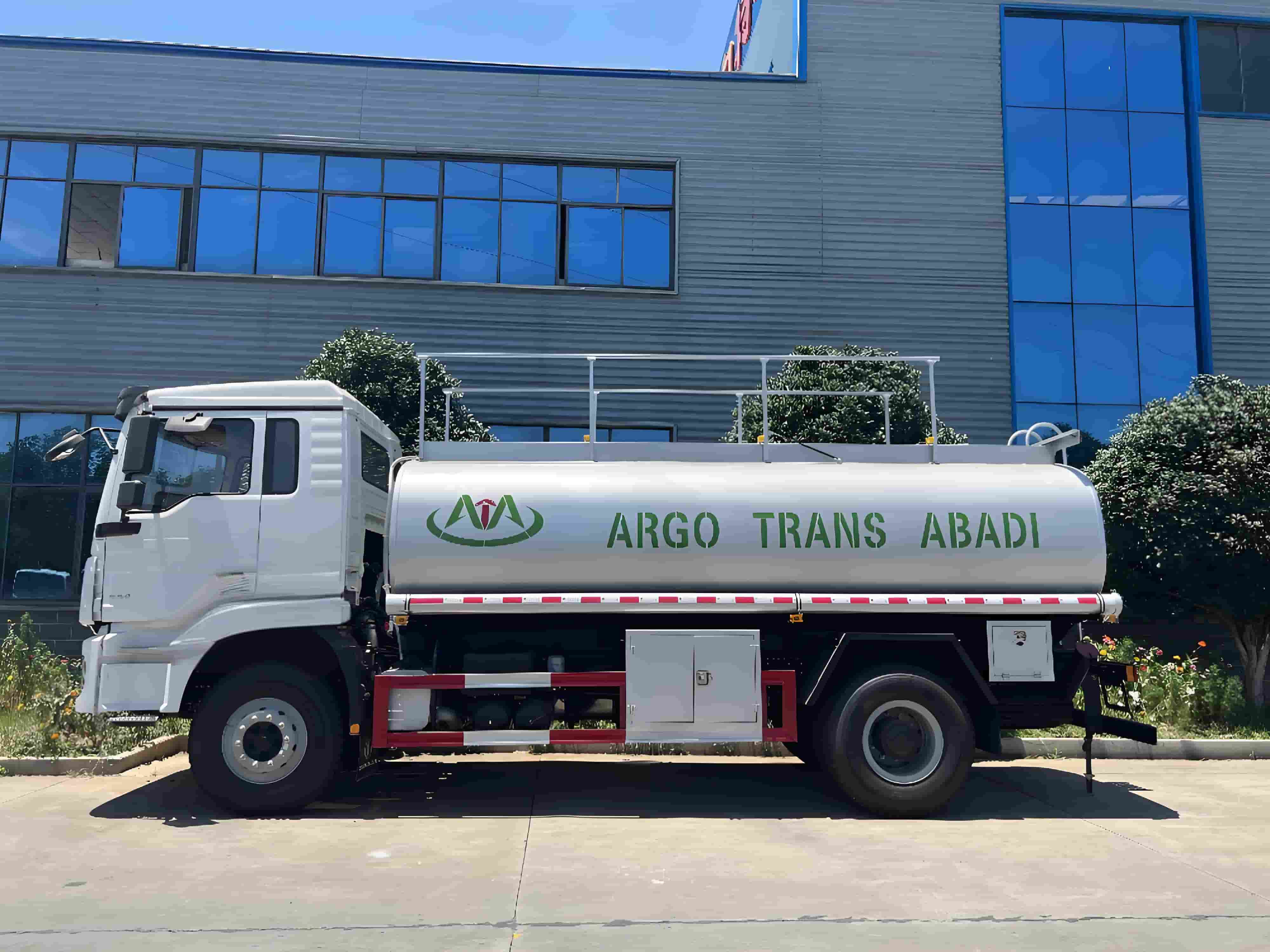

7-15 days10000L-15000L Shacman L/RHD Fueling Tank Truck with Refueling Machine for Transportation and Storage Petroleum
Product Description:
1. This Fuel truck adopts Shacman H3000 chassis, 10000-15000Liters Fuel Tank, equipped with 4 compartments, with oil indicator for each compartment.
2. The tank body is made of aluminum alloy, which is rust proof and lightweight.
3. Tank pipe network system: it is made of all aluminum alloy and has double networks, which can realize self suction, self pumping and self flow oil drainage.

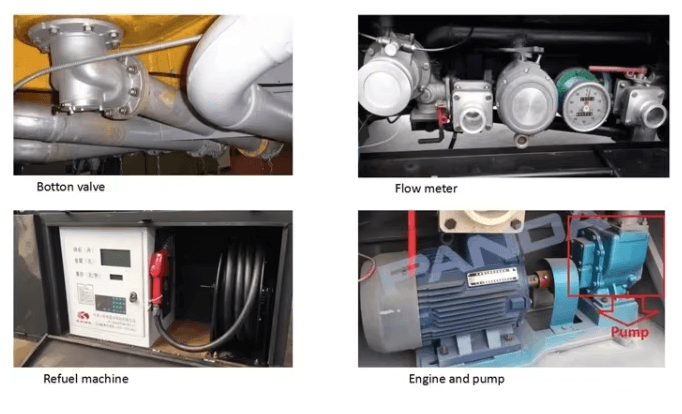

4. Standard configuration: aluminum alloy oil pump, European standard manhole with breathing valve, Bottom valve for Emergency cut-off, Non slip walkway and foldable handrail on the top of tank, Pipeline filter screen, Fire extinguisher, 2pcs discharge hose and storage on each side, Safety warning marks on the tank.
5. Special function configuration: equipped with flowmeter and refueling reel with refueling gun, and each compartment is equipped with oil indicator.
Specification of 10000L-15000L Shacman L/RHD Fueling Tank Truck with Refueling Machine for Transportation and Storage Petroleum
|
Specification |
||
|
Truck specification |
|
|
|
Product name |
10000L-15000L Shacman L/RHD Fueling Tank Truck |
|
|
Overall dimension |
8700x2460x2900mm |
|
|
Chassis specification |
|
|
|
Chassis brand |
Shacman |
|
|
Drive type |
4x2, Left/Right Hand Drive; New condition |
|
|
Wheelbase |
4600mm |
|
|
Fuel type of engine |
Diesel |
|
|
Engine |
Model |
WP10.300E22 |
|
|
Maximum horsepower |
300HP |
|
|
Emission standard |
Euro II |
|
Gearbox |
Type |
RTD-11509C with QH50(9 forward& 1reverse),manual |
|
Tyres |
Size |
9.00R20 |
|
|
Quantity |
6+1pc |
|
Upperbody specification |
|
|
|
Fuel tank |
Capacity |
10000 L-15000L/15m3/15cbm |
|
|
Tank material |
aluminium alloy |
|
|
Tank size |
6200×2050×1445mm |
|
|
Thickness of tank |
5 mm |
|
|
Tank shape |
Rectangular Oval |
|
|
Compartment |
1 to 4, with internal waves baffles |
|
|
Transport medium |
92# gasoline |
|
Fuction |

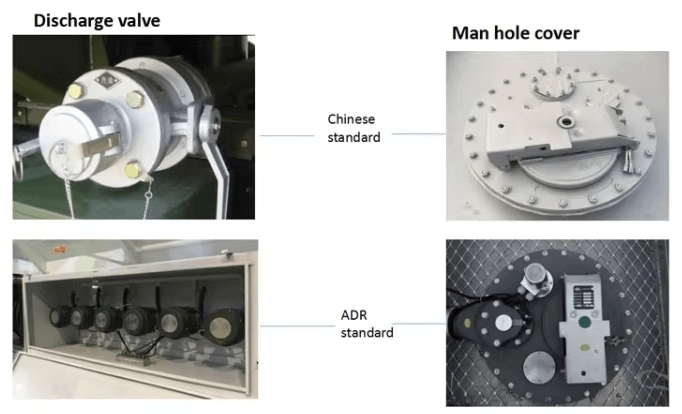

Manhole on top tanker |
1 to 4 aluminum,Pressure relief valve |
|
|
Safety valve |
European standard |
|
|

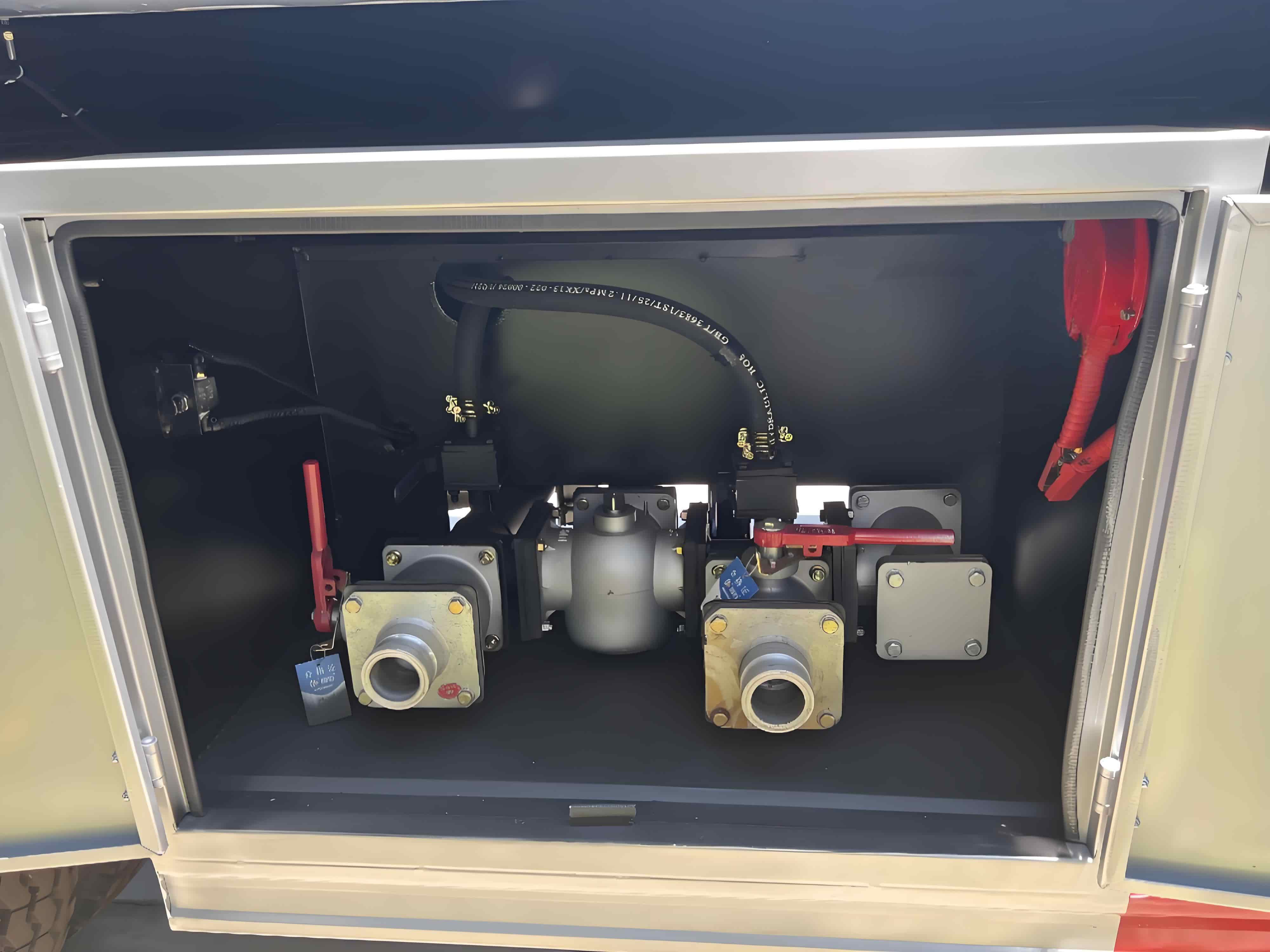

Discharge valve |
Alluminum Alloy Ball Valve type |
|
|
Emergency cutoff device |
Alluminum Alloy Bottom Valve |
|
|
Oil pump |
aluminium alloy |
|
|
Standard configuration |
sub frame, tool box, climbing ladder, fire extinguisher. |
|
|
Flowmeter |
Naide |
|
|

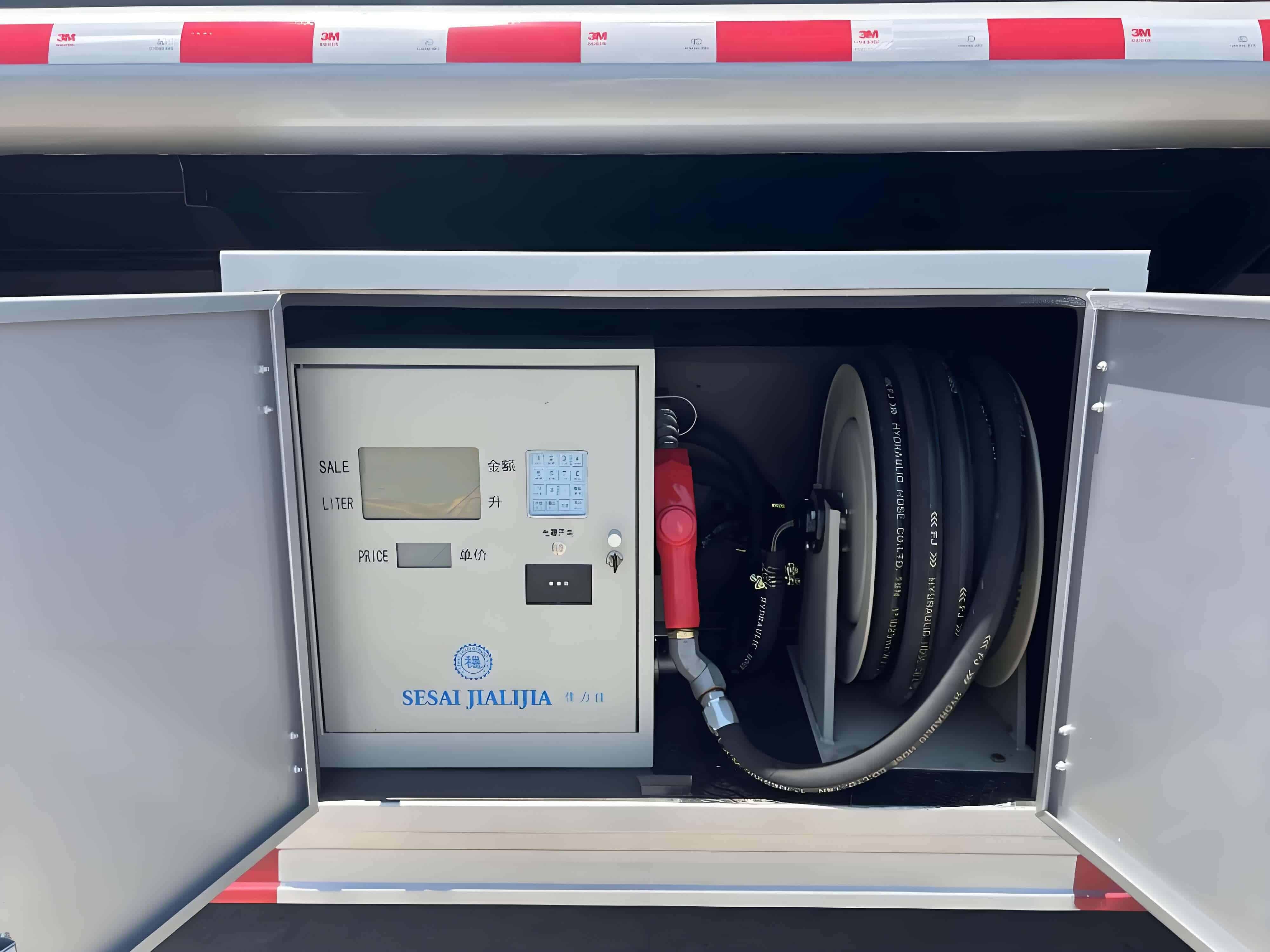

Refueling reel |
15M Refueling reel with refueling gun |
|
|
Oil indicator |
1pcs for each compartment, total 4pcs |
Performance description:
1. Reel refueling: After filtering and metering, the fuel in the tank of the vehicle is injected into the aircraft fuel tank or other fuel receiving equipment through the gravity refueling gun of the reel hose in the control room.
2. Pump oil filtration: filter the fuel in the oil tank of the vehicle or in the external pipeline, and then return it to the oil tank of the vehicle or other oil receiving equipment through the pump outlet connector to realize the ball circulation filtration function.
3 .For oil tank loading, the external pipeline of the joint valve is used to load oil at the bottom of the oil tank, or the oil pumping function can be realized through this oil pump.
