Telescopic boom truck is specialized vehicle equipped with a hydraulic crane mechanism that is mounted on a commercial truck chassis. It is designed for tasks that involve lifting and transporting materials, as well as hoisting personnel to various heights for work purposes.
Item No :
TB005Order(MOQ) :
1Payment :
TT,L/CProduct Origin :
Suizhou,Hubei,ChinaColor :
mutilcolorShipping Port :
Shanghai,HorgosLead Time :
7-15 days21-meter Lift 16-ton Load Telescopic Boom Truck
Product Description:
Telescopic boom truck is mainly composed of chassis, crane and cargo box. It is a kind of equipment that can realize the lifting and turning of goods through the hydraulic lifting and telescopic system, which is usually installed on the truck.It is mainly used for various loading and unloading, installation and lifting operations, especially for field lifting, rescue operations and narrow place operations. Telescopic boom trucks are widely used for hoisting and transportation of infrastructure materials and other equipment such as municipal construction, coal mine engineering, landscaping, etc.
Specification
|
Specification |
||
|
Truck specification |
|
|
|
Product name |
Telescopic boom truck/crane truck |
|
|
Chassis specification |
|
|
|
Chassis brand |
Shacman |
|
|
Overall dimension |
12000x2550x3980mm |
|
|
Drive type |
8x4 LHD/RHD |
|
|
Wheelbase |
2100＋4575＋1400mm |
|
|
Fuel type of engine |
Diesel |
|
|
Engine |
Brand |
Yuchai |
|
|
Maximum horsepower |
220hp |
|
|
Emission standard |
Euro2/3/4/5/6 Optional |
|
Gearbox |
type |
12-speed high and low |
|
Tyres |
Size |
12.00R20 |
|
|
quantity |
12 |
|
Upperbody specification |
||
|
Crane brand |
Hengli |
|
|
Max lifting capacity |
16T |
|
|
Max working height |
21.3m |
|
|
Boom sections |
4sections |
|
|
Type of crane |
Hydraulic Telescopic Boom |
|
|
Rotation angle |
360° all rotation |
|
|
Cargo box material |
Carbon steel |
|
|
Cargo box thickness |
Bottom:3mm,side:1.5mm |
|
|
Rear bumper |
Carbon steel |
|
|
Side under run |
Carbon steel |
|
|
Mud guard/mud flap |
With mudguard and rubber mud flap |
|
|
Spare wheel bracket |
1piece |
|
|
Light |
Electrical system in accordance to GB standard, complete with light for tail, signal,reverse, nameplate light and, and side marker lights at both sides of truck, complete with reflective tape at two sides and rear of the truck. |
|
|
Painting |
1 Coat of anticorrosive prime, 2 coats of final paint .Colour as request |
|
Features

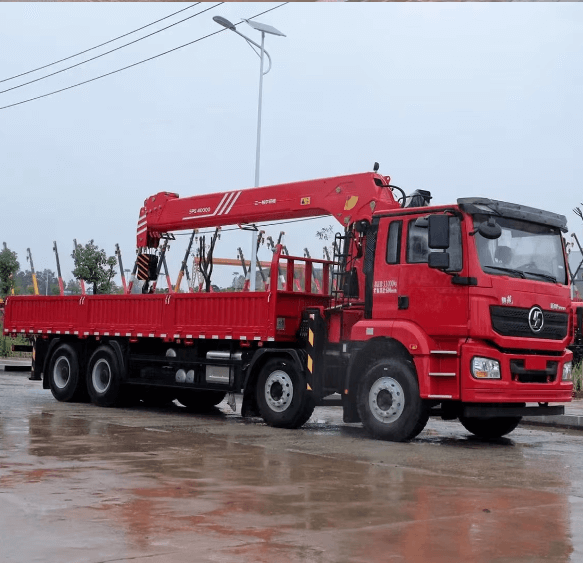

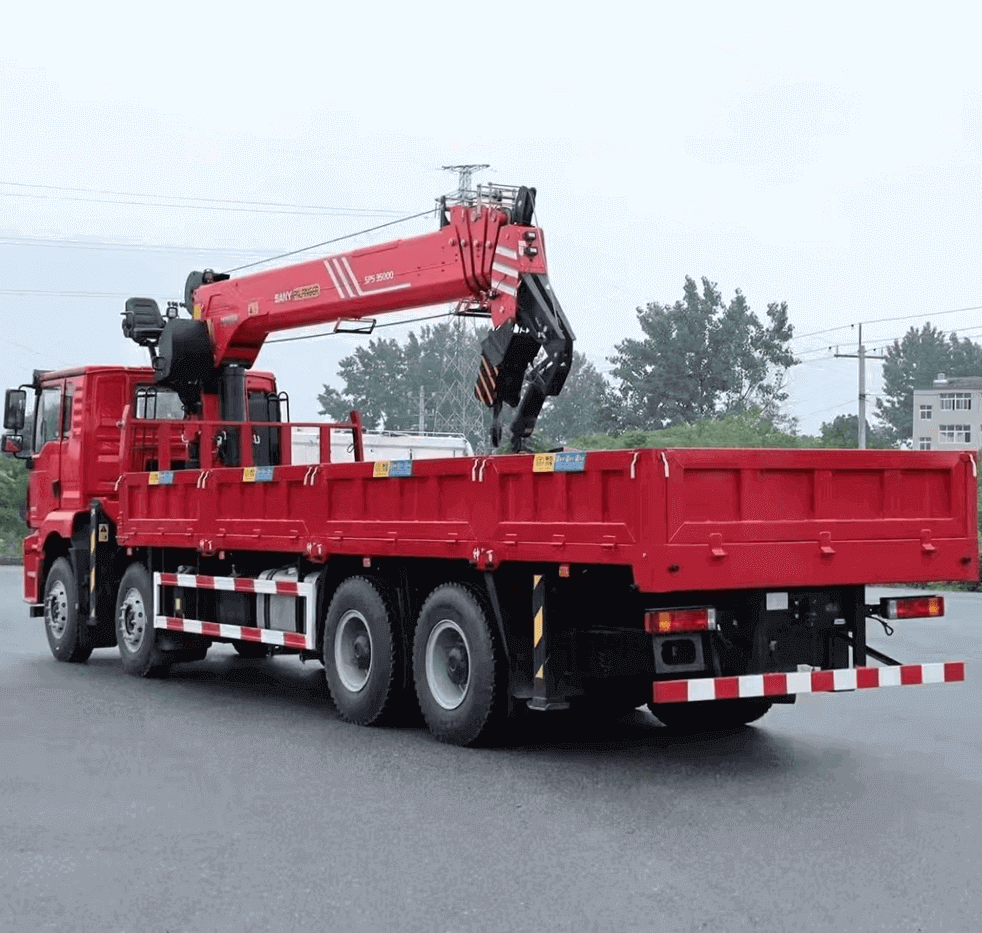

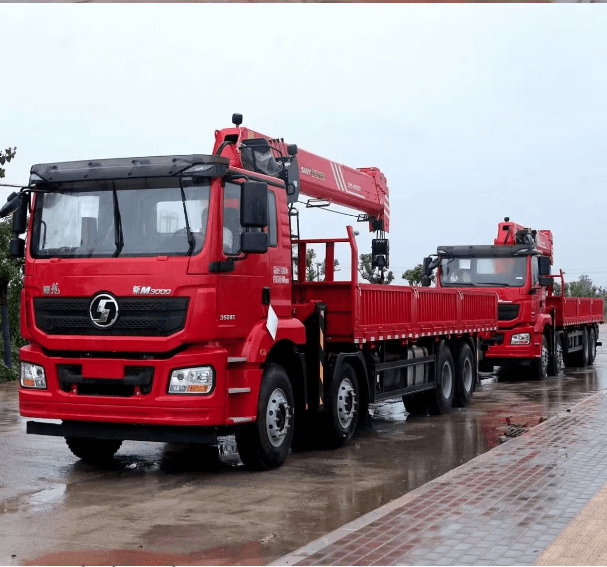

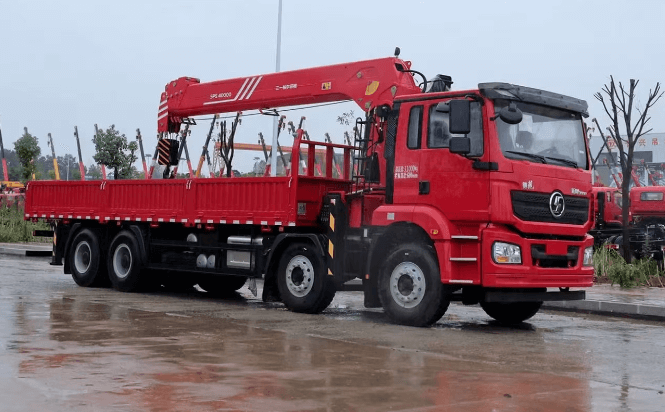

1. This Straight boom truck adopts Shacman chassis,Boom type is Telescopic boom, Max. Loading weight is 16ton,Max lifting height is 21m.
2. The whole machine adopts finite element light weight design, with light dead weight and small installation space;Compact and beautiful structure; Polygonal arm body section, with greater lifting capacity and strong bending and torsion resistance under the same amplitude.

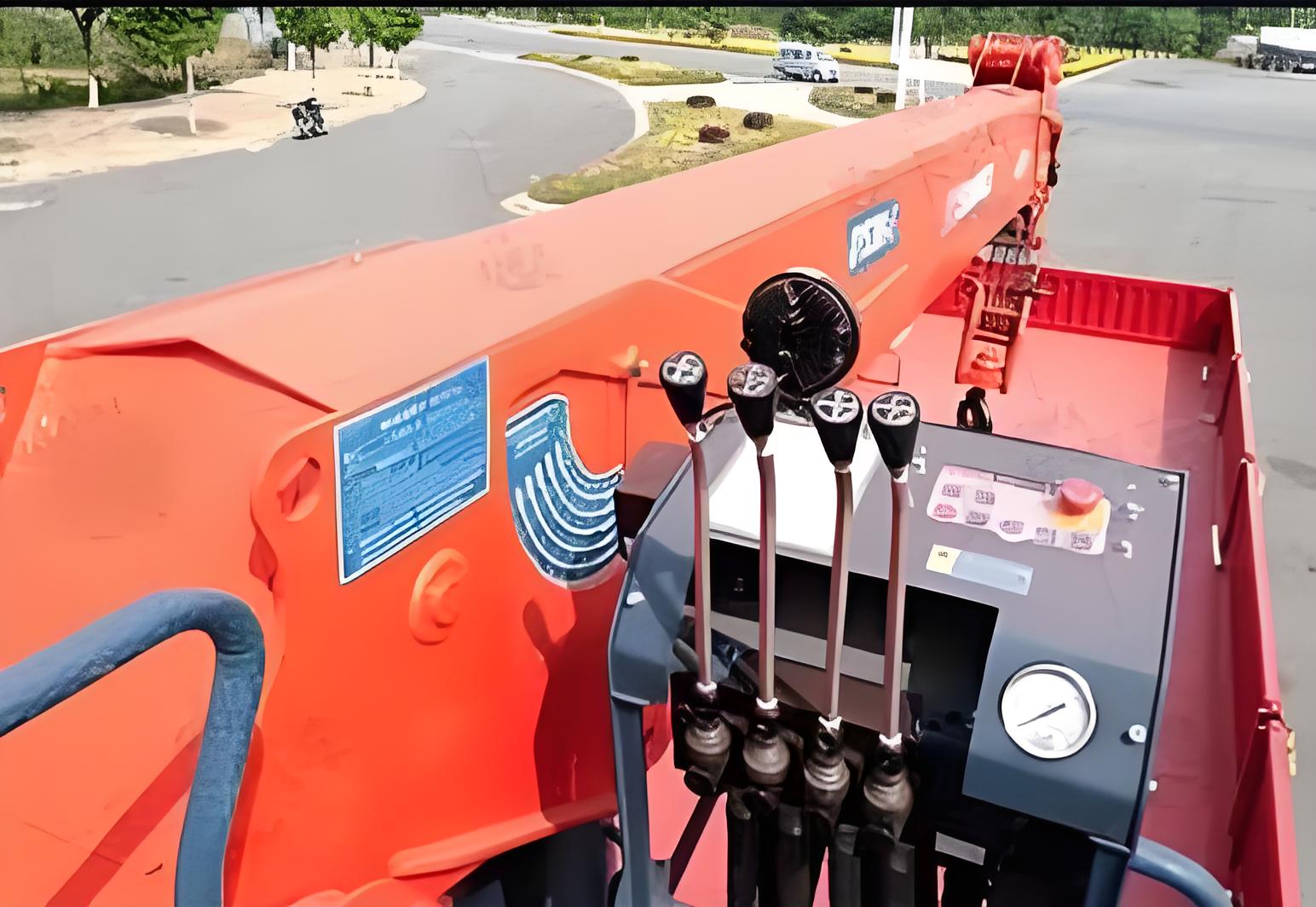

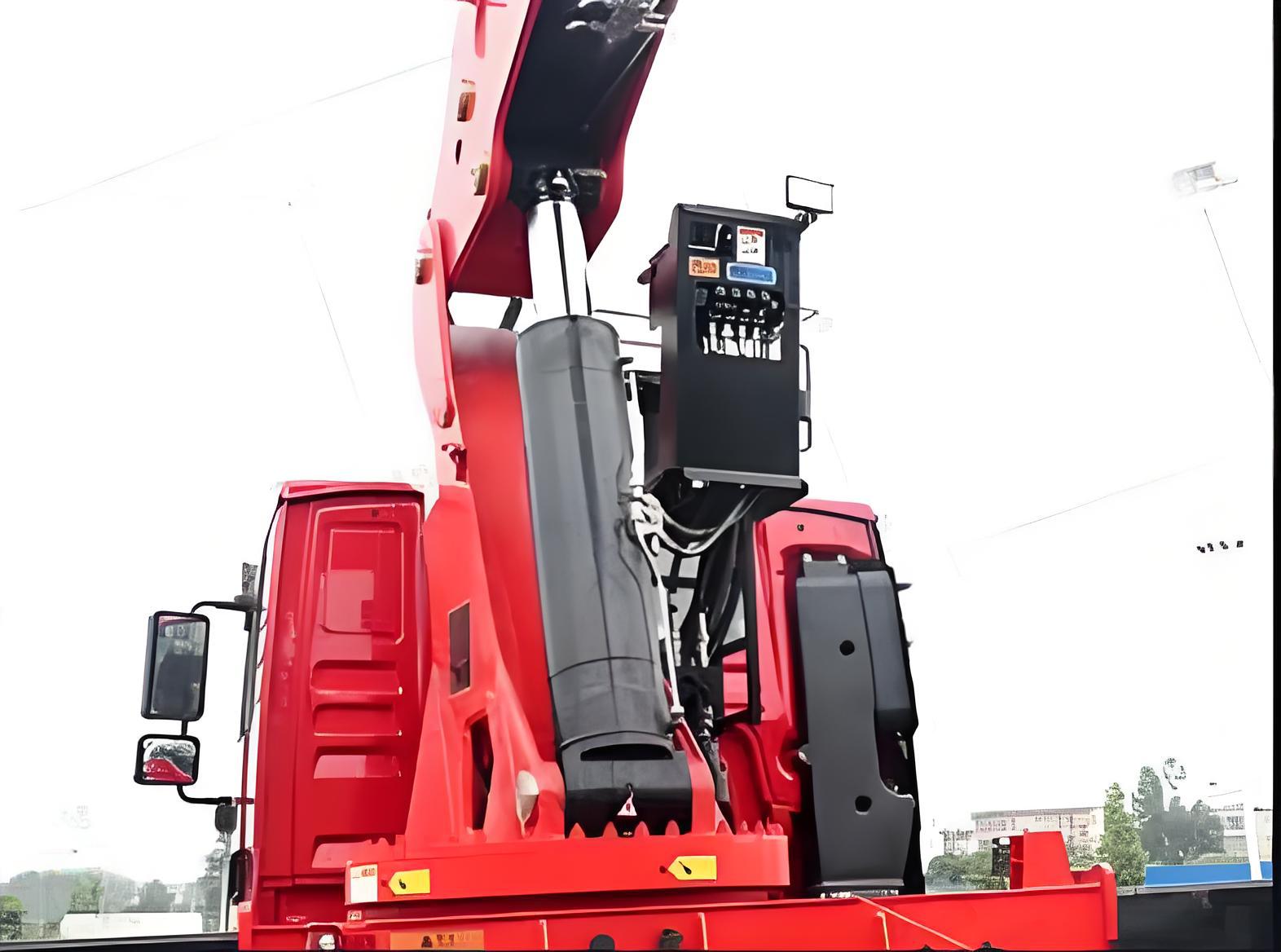

3.The turntable is operated by a high position seat, which has a better working view and can be equipped with remote control.
4. Regenerative control and new sequential telescoping control system are adopted to reduce the telescoping pressure loss of the boom, improve the loaded telescoping capacity and the working efficiency of the whole machine.
5. The rotatable double stage double cylinder outrigger is adopted to improve the stability of the whole machine on the basis of improving the adaptability of the site.

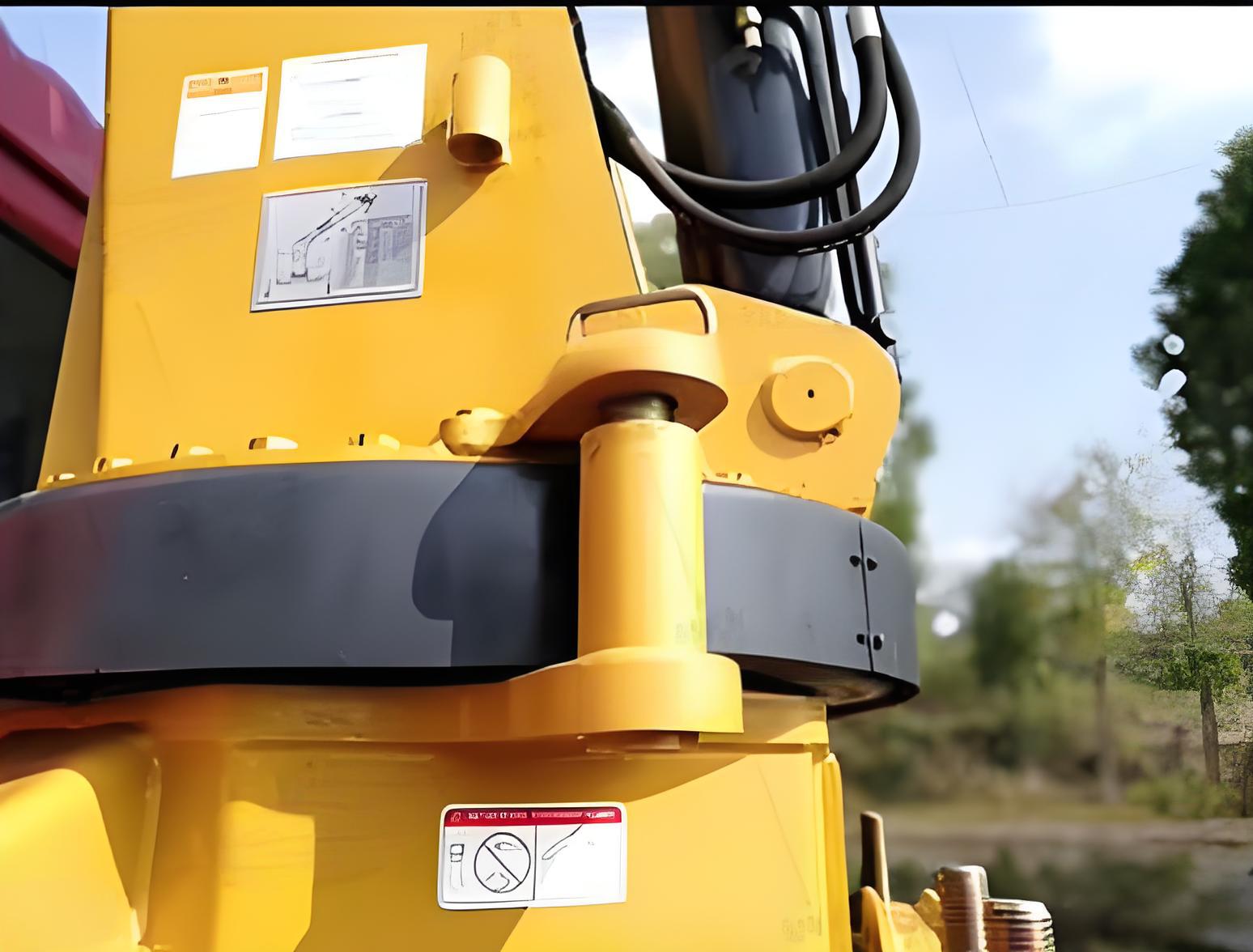

6.Double reducers are used to drive slewing, which makes the slewing action more stable and powerful, and the braking effect is better; Upper works hydraulic proportional valve has good inching performance and can perform compound actions, with high control comfort; The standard high-power radiator ensures that the oil temperature of the crane is not too high during long-term heavy load operation; Standard hydraulic torque limiting valve ensures that customers are more comfortable using the crane.
Application scenarios
|
|

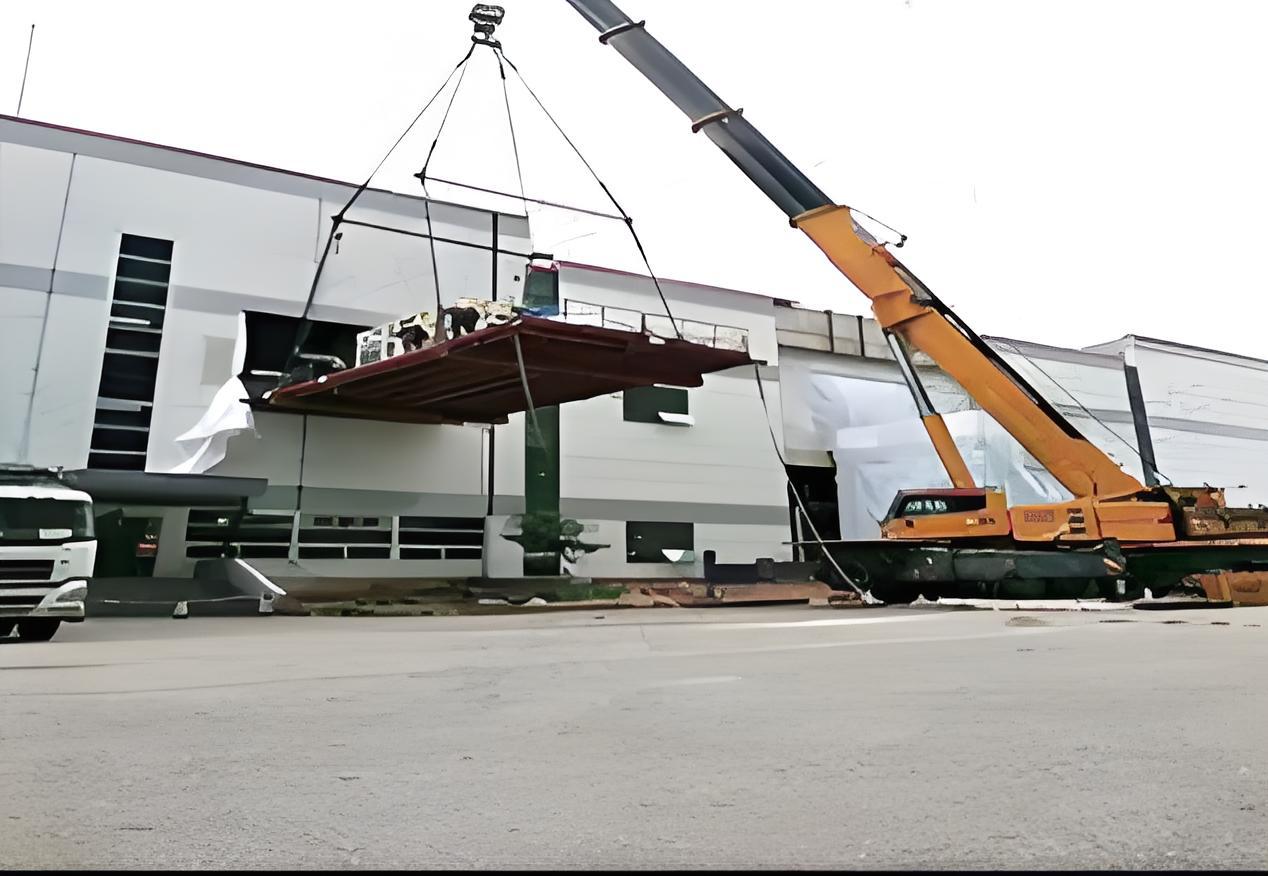

1. For handling equipment: most of the handling companies with a certain scale will choose to purchase semi folding telescopic boom truck and crane truck. The strong lifting capacity of telescopic boom truck and the low space operation height make them very suitable for equipment handling activities in low plants.
|
|

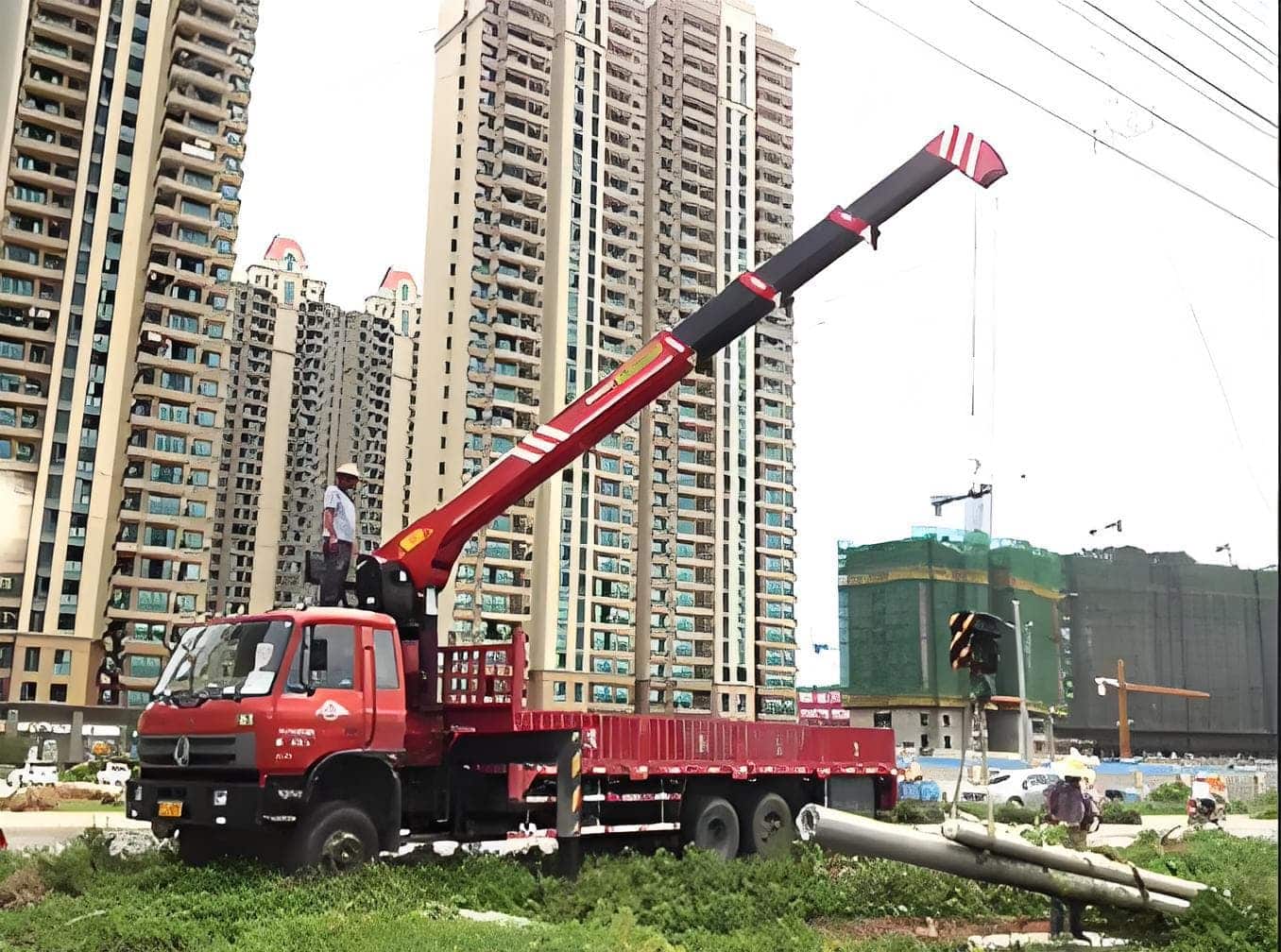

2. For landscaping: straight arm telescopic boom truck is generally selected, which is generally used for outdoor activities with small tonnage and long extension distance.
|
|
|
|
3. For ports and docks: the high mobility of telescopic boom truck has unique advantages in working in busy places such as ports and docks.
|
